RapidArm

Affordable, Trusted Collaborative Robot Solution

Say hello to our new series of collaborative robots. RapidArm was built with the with the word “innovation” in mind, it was designed to grow in capability alongside your company, a spring board to improved product quality and productivity, so you will always be able to stay ahead of competition. Equipped with intuitive programming, versatile use and an almost endless list of opportunities for add-ons, RapidArm is able to complement production regardless of your industry, company size or product nature.

The RA series makes collaborative automation accessible to you.

COMPARISON TABLE

The RA Series

.

Axis Count

Payload

Reach

Height

Weight

Joint Range

Weight

Tool Speed

Repeatability

I/O Power Supply

IP Class

Communication

Programming

.

Certification

.

Main Material

Power Consumption

RA3

6

3 Kg

590 mm

967.5 mm

17 Kg

+/- 360 Deg

135 Deg / Sec

.

.

.

.

.

.

.

.

.

.

.100 W

RA5

6

5 Kg

800 mm

1205 mm

23 Kg

23 Kg

135 Deg / Sec

.

.

.

.

.

.

.

.

.

.

180 W

RA5L

6

3.5 Kg

950 mm

.

24 Kg

24 Kg

135 Deg / Sec

1 m/s

+/- 0.05 mm

DC 24V / 2A

IP54

EtherCAT

Zero-force guide / Teach Pendant Interface / API

ISO10218-1   IEC60204-1   EN61000-6    ISO15066

Aluminum Alloy

180 W

RA10

6

10 Kg

1000 mm

1456.0 mm

1456.0 mm

1456.0 mm

90 Deg / Sec

.

.

.

.

.

.

.

.

.

.

350 W

RA15

6

15 Kg

700 mm

.

40 Kg

40 Kg

90 Deg / Sec

.

.

.

.

.

.

.

.

.

.

350 W0.

HOW WE DIFFER FROM THE REST

RapidArm Benefits

P

Additional Axes

User can easily connect additional axes to the robot to handle external processes such as conveyor or cartesian systems.

R

C++ or C# API Access

Apart from the software tool, user can make the robot perform custom and complex tasks by leveraging our RapidRobot API.

Individual Joints Purchase

User can purchase individual joints to build their own robot to reduce cost further (ex: 2 or 4 axis robot).

INTERRELATIONSHIP OF PHYSICAL COMPONENTS

RapidArm Architecture

RECOMMENDED HARDWARE

RapidArm Components

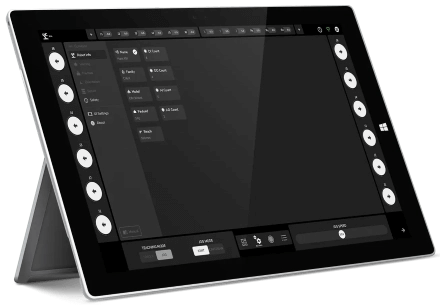

Surface Pro

Dimensions (HxWxD): 292 x 201 x 8.5 mm

Screen Size: 12.3 “

Resolution: 2736 x 1824

Weight: 784 g

Style: Wired or Wireless

Robot Controller

OS: Windows 10 32/64 bit

Core Support: 6th generation Intel® Core™ i7/i5/i3 LGA1151 socket type processors

Chipset: Intel® 100 Series

Display Support: 1 x DVI-D, and 1x HDMI for dual independent

LAN Ports: 3 x Intel® GbE LAN ports; support WoL, teaming and PXE

USB Support: 4 x USB 3.0, 2 x USB 2.0 and 2 x RS232/422/485 auto

Power Support: +24VDC input & ATX power mode.

INTUITIVE USER INTERFACE

RapidRobot Software

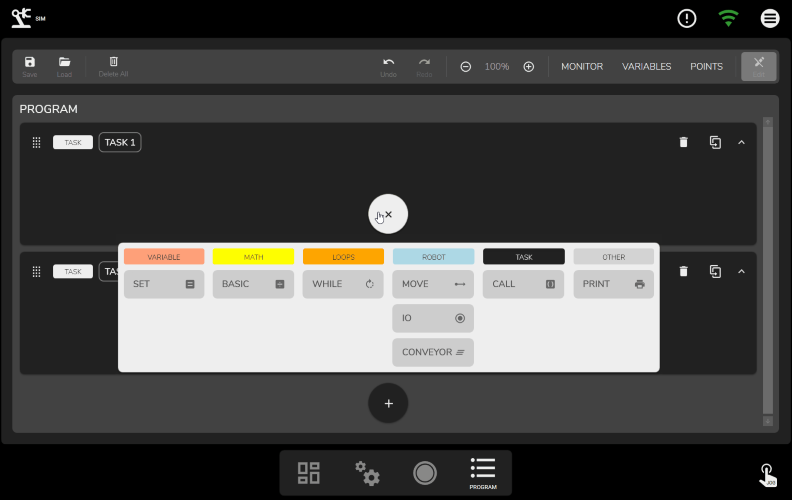

Program

The Most Intuitive Controller For Cobots

Enjoy the ultimate robot program editor. Creating programs is like using a mobile application. It brings an advanced design interface to the robotic industry that both beginners and experts will fall in love with. It’s incredibly smart, super flexible, amazingly powerful and visual by nature. This is how programming a robot is meant to be done.

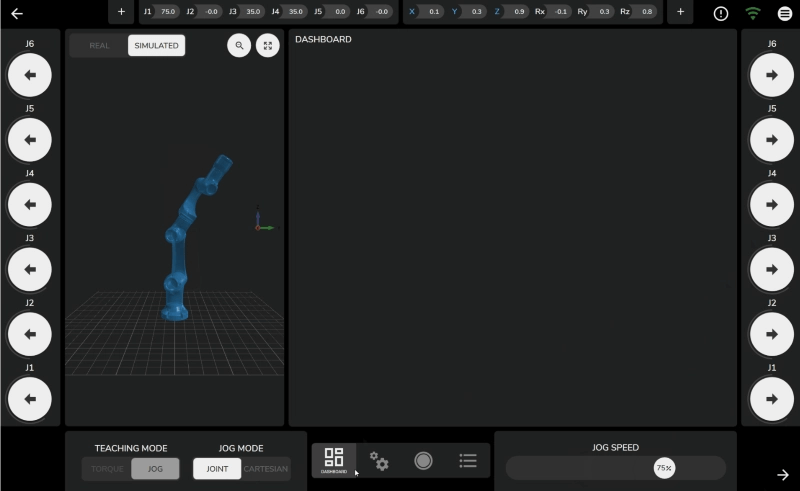

Jog

Moving a Robot Has Never Been Easier

With our software, moving your robot to is extremely easy. You have complete freedom to jog in Joint or Cartesian space. Easily change speed, modes and save points. With our animations you will know exactly what part of the robot is moving and when certain limits have reached. Controlling a robot has never been this easy and fun!

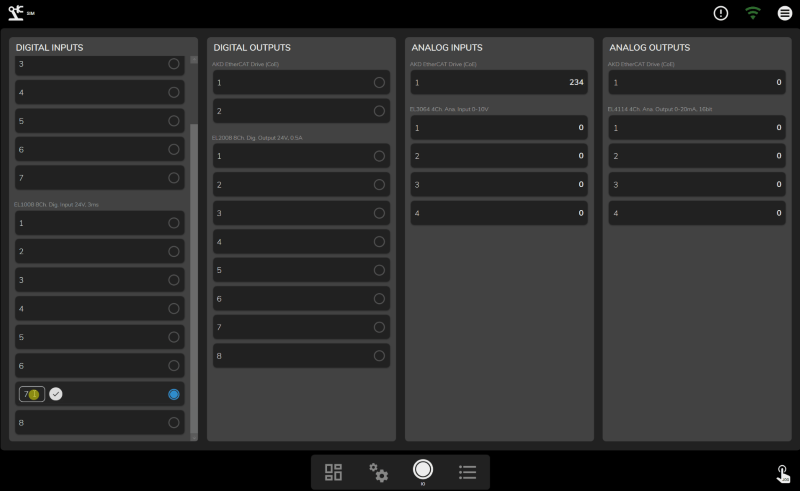

I/O

Inputs and Outputs State and Manipulation

Troubleshooting and configuring IO all in one place. Easily modify the state of each individual component or simply observe how your program is changing the state of your available IO.

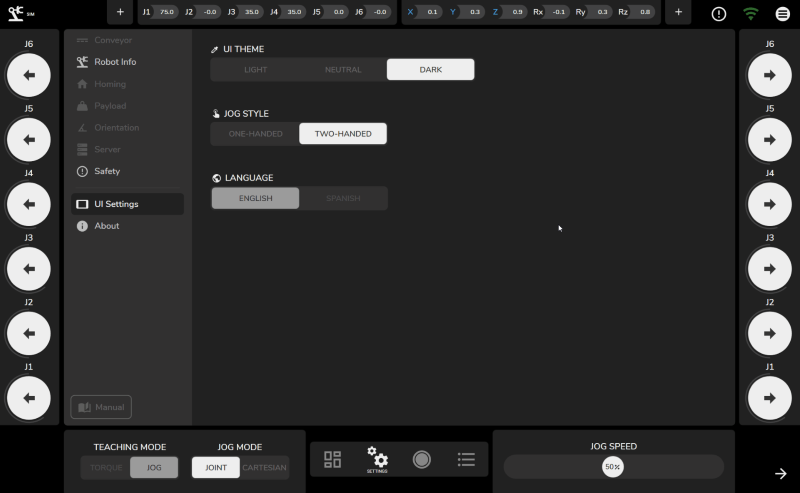

Customize

Different Flavors For Different People

Here at RSI we see how different popular technologies and trends evolve and it is our goal to stay current with technologies that might make our customers life easier. The RA Software allows you to change the theme, the jogging style, and the language. These are just the first custom items of many more to come!

STARTING AT

RapidArm Pricing

RA3

$21,000
  • 3 Kg payload
  • 590 mm reach
  • Includes Robot Arm
  • Includes Industrial PC
  • RapidRobot Teaching Tool
  • Powerful C++, C#, VB .NET API

RA5

$24,000
  • 5 Kg payload
  • 800 mm reach
  • Includes Robot Arm
  • Includes Industrial PC
  • RapidRobot Teaching Tool
  • Powerful C++, C#, VB .NET API

RA5L

$29,000
  • 3.5 Kg payload
  • 950 mm reach
  • Includes Robot Arm
  • Includes Industrial PC
  • RapidRobot Teaching Tool
  • Powerful C++, C#, VB .NET API

RA10

$31,000
  • 10 Kg payload
  • 1000 mm reach
  • Includes Robot Arm
  • Includes Industrial PC
  • RapidRobot Teaching Tool
  • Powerful C++, C#, VB .NET API
How Much You Save Compared to Leading Collaborative Robot Company?

%

Similar to 3kg Payload Robot

%

Similar to 5kg Payload Robot

%

Similar to 10kg Payload Robot

A SIZE FOR EACH APPLICATION

Dimensions

RA3

RA5

RA10

DESIGN FOR ENDLESS APPLICATIONS

Projects

Ready to start automating?

customers have automated with help of our products and team.
